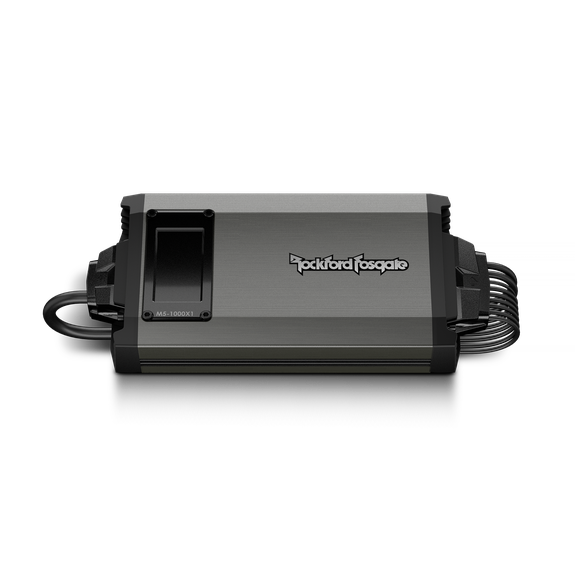

M5-1000X1

1,000 Watt Mono IPX6 Element Ready™ Amplifier
M5-1000X1
Serious sound, made simple. The M5 amplifiers feature the next level of Element Ready™ design from Rockford Fosgate that’s built as rugged as the outdoor environment it’s used in.

Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your amplifiers stand the test of time.

C.L.E.A.N.: Our Patented circuit with input and output clip indicators help match the source unit to the amplifier, which makes for easy set-up and optimizes musical output.

P.O.W.E.R. Supply: The unique P.O.W.E.R. supply continues to generate more than rated power as the voltage increases, giving you the output, you demand.

FEATURES AT A GLANCE
Play all day, easy to integrate, and keep music playing for extended lengths of time
RATS (Rockford Automated Testing System) proprietary quality & performance tested
PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
Element Ready™ design with integrated harness & panel seals
Constant Power provides instantaneous delivery of output over varying impedance loads
C.L.E.A.N. input/output clip detection and indicator LEDs
Balanced Differential Inputs eliminates noise picked up by signal cables
Low Impedance Stability
Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

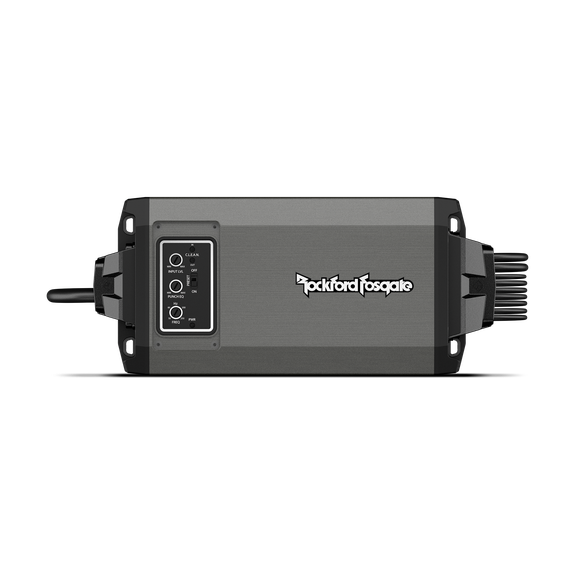

Top mounted control panel with Element Ready™ smoked lens cover
2-Year Warranty
MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
Remote-Out feature when using high level inputs
Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
Class-BD technology provides 75-80% efficiency over traditional class A/B designs
OEM and aftermarket radio integration inputs

Number of Channels1
Total Power
(Sum of Rated Power)1000 Watts
Rated Power
(RMS Continuous Power)CTA-2006 GuidelinesCTA-2006 Continuous Power Rating
≤1.0% THD+N
500 Watts x 1 @ 4Ω
750 Watts x 1 @ 2Ω
750 Watts x 1 @ 1Ω
Dynamic Power
(PVC/PowerCube®)CTA-2006 GuidelinesCTA-2006 Dynamic Power Rating
525 Watts x 1 @ 4Ω
900 Watts x 1 @ 2Ω
1000 Watts x 1 @ 1Ω
Bridgeable—
Frequency Response30Hz – 245Hz
Input Sensitivity150mVrms – 12Vrms
Circuit Topology ClassClass-BD
Efficiency (average)>80%
Total Harmonic Distortion (THD+Noise)<0.1% THD+N @ 1 Watt
Signal InputLow-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output—
Tone ControlsSub: 0-18dB @ 45Hz
Crossover ControlsLow-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth

Infrasonic:
30 Hz @ 12dB/Octave Butterworth
Remote ControlsNo
Visual IndicatorsPower: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
Power Wire Gauge8 AWG
Power Input ConnectorCompression Terminal Block
Replacement 1040-57997
Speaker Wire Gauge16 AWG
Speaker Output Connector4-Pin Molex
CoolingConvection
HeatsinkExtruded Aluminum
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)70A MAXI
Littelfuse #0299070
Average Current Draw (13.8V Music)4Ω: 23 A
2Ω: 53 A
1Ω: 64 A
Max. Current Draw (13.8V Sinewave)4Ω: 46 A
2Ω: 75 A
1Ω: 88 A
Suggested Alternator

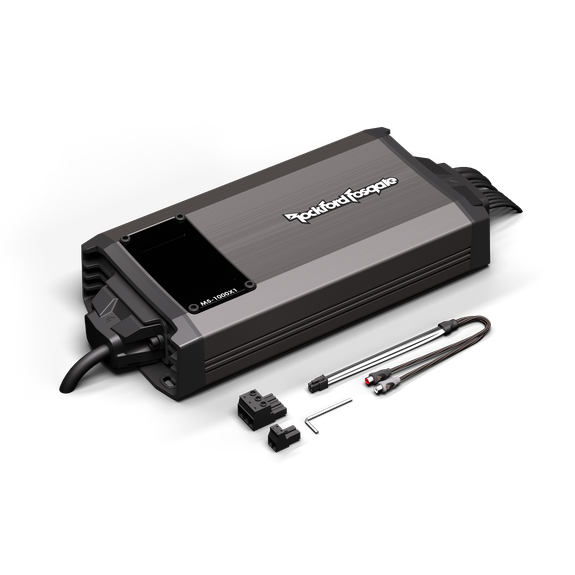

Included in the Box(1) Control Cover (1130-75511-01)
(1) Extension Harnesses (1130-75505-01)
(1) Pwr/Gnd/Rem Input (1040-61932-01)
(1) RCA Input Harness (1560-56458-02)
(1) Speaker Out Connector (1040-56811)
(1) Allen wrench
(1) RF sticker
(1) PRESET warning label
(1) Performance verification certificate
Dimensions (H x W x D)1.7″ x 4.25″ x 8.41″
(42.8 mm x 108 mm x 213 mm)
Does not include harnesses
Shipping Weight6 Lbs. (2.7 Kg.)
