M2-500X1

M2 500 Watt Mono Element Ready™ Amplifier
M2-500X1
Designed to withstand the elements, the M2-500X1 Element Ready™ amplifier is a 500 watt, class-D model, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

FEATURES AT A GLANCE
UV stable powder coated cast aluminum heatsink
Conformal coated circuit board protects against dust and water
Element Ready™ design protects against outdoor exposure
Zinc Nickel-plated Marine grade brass connection terminals
Optimized using AudioGraph PowerCube measurement tool
C.L.E.A.N. input/output clip detection and indicator LEDs
Integration with OEM and Aftermarket Radios
Low Impedance Stability
RATS (Rockford Automated Testing System) proprietary quality & performance tested
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
Continuously Variable On Board Punch EQ
Short Circuit & Over Current Protection

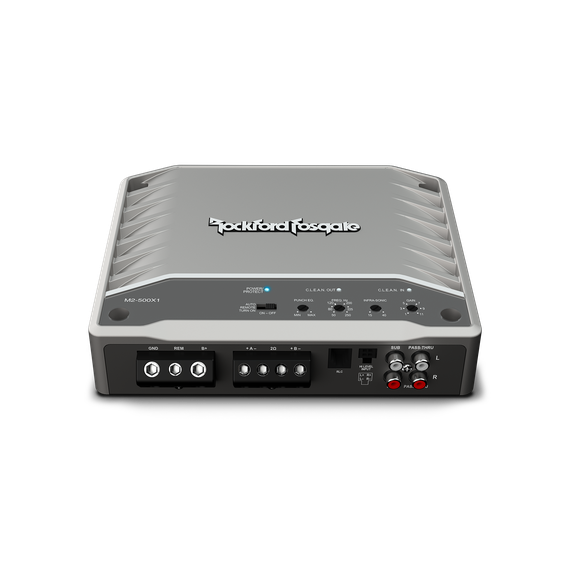

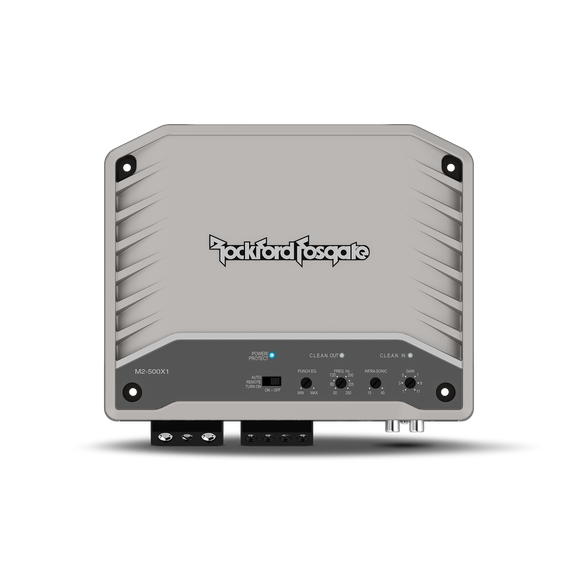

Top Mounted Control Panel
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
Includes RLC Remote Level Control
Variable Infrasonic Filter
Balanced Differential Inputs eliminates noise picked up by signal cables
Integrated Power and Speaker Terminals
“Auto-Sense” turn-on with remote out (high level in)
CEA-2006 Compliant & CE Compliant

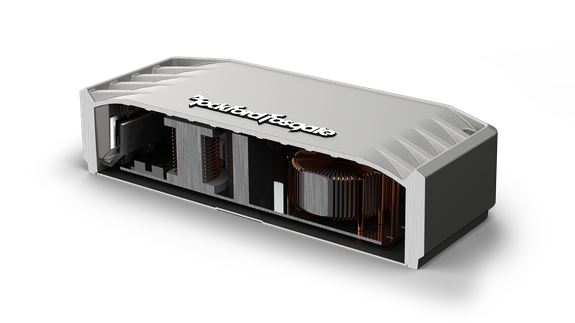

Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
2-Year Warranty
RCA pass-thru outputs
Rollback Protection

Cta-2006 Compliant
Number of Channels1
Total Power
(Sum of Rated Power)500 Watts
Rated Power
(RMS Continuous Power)300 Watts x 1 @ 4Ω
500 Watts x 1 @ 2Ω
Dynamic Power
(PVC/PowerCube®)350 Watts x 1 @ 4Ω
590 Watts x 1 @ 2Ω
BridgeableNo
Frequency Response20 Hz – 250 Hz
Input SensitivityLow-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology ClassClass D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)4Ω: <1.0%
2Ω: <1.0%
Signal InputLow-Level: 2 RCA
High-Level: 4-Pin Molex
Signal OutputLow-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls0 to +18 dB @ 45 Hz
Crossover ControlsLow-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz – 40 Hz @ 12dB/Octave Butterworth
Remote ControlsYes
Visual IndicatorsPower/Protect
C.L.E.A.N. In
C.L.E.A.N. Out
Power Wire Gauge4 AWG
Power Input ConnectorCompression Terminal Block
Speaker Wire Gauge8 AWG
Speaker Output ConnectorCompression Terminal Block
CoolingConvection
Heatsink
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)80 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)52 A
Suggested Alternator
Included In The Box
Dimensions (H x W x D)1.9″ x 6.8″ x 8.5″
(4.9 cm x 17.3 cm x 21.5 cm)
Shipping Weight4.8 Lbs. (2.18 Kg)
