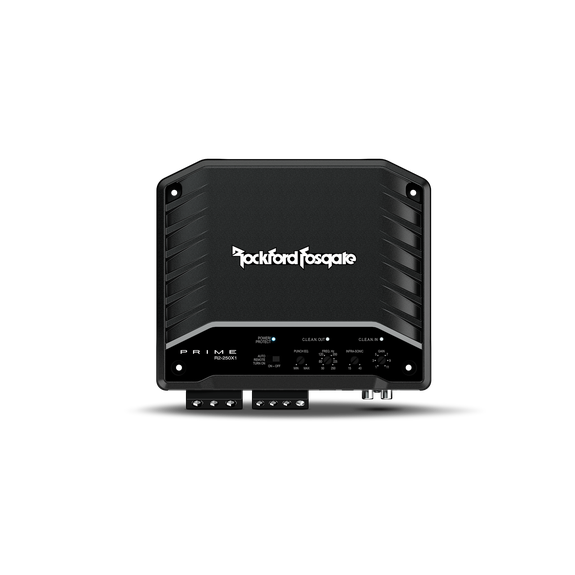

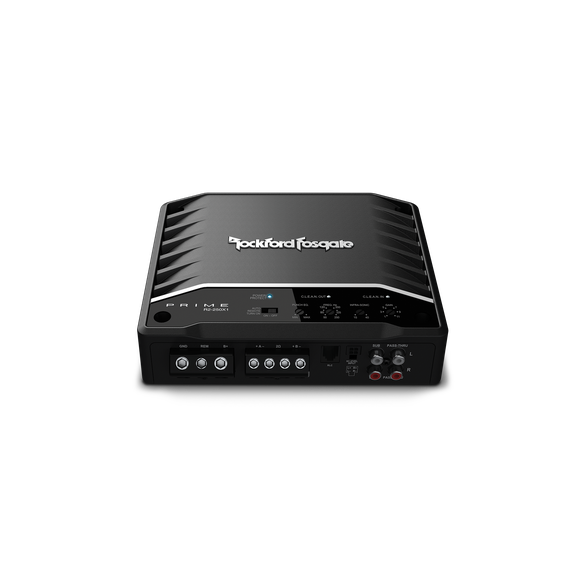

R2-250X1

Prime 250 Watt Mono Amplifier
R2-250X1
Primed for Performance, the R2-250X1 is a 250 watt, Class-D amplifier, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
FEATURES AT A GLANCE
Variable Input Gain adjustment level
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
Balanced Differential Inputs with RCA Pass Through Outputs
Features C.L.E.A.N. Set-up
High Level Input Capable
Short Circuit & Over Current Protection
Top Mounted Control Panel
Rollback Protection
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
Continuously Variable On Board Punch EQ
Includes RLC Remote Level Control
Class-D Topology
Cast aluminum heat sink
Variable Infrasonic Filter
1 Year Warranty
CEA-2006 Compliant & CE Compliant
Number of Channels1
Total Power
(Sum of Rated Power)250 Watts
Rated Power
(RMS Continuous Power)150 Watts x 1 @ 4Ω
250 Watts x 1 @ 2Ω
Dynamic Power
(PVC/PowerCube®)209 Watts x 1 @ 4Ω
328 Watts x 1 @ 2Ω
BridgeableNo
Frequency Response20 Hz – 250 Hz
Input SensitivityLow-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology ClassClass-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)4Ω: <1.0%
2Ω: <1.0%
Signal InputLow-Level: 2 RCA
High-Level: 4-Pin Molex
Signal OutputLow-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls0 to +18 dB @ 45 Hz
Crossover ControlsLow-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth

Infrasonic:
15 Hz – 40 Hz @ 12dB/Octave Butterworth
Remote ControlsYes
Visual IndicatorsPOWER (Blue) / PROTECT (Red)
C.L.E.A.N. IN (Red)
C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge4 AWG
Power Input ConnectorCompression Terminal Block
Speaker Wire Gauge8 AWG
Speaker Output ConnectorCompression Terminal Block
CoolingConvection
Heatsink
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)50 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)30 V
Suggested Alternator

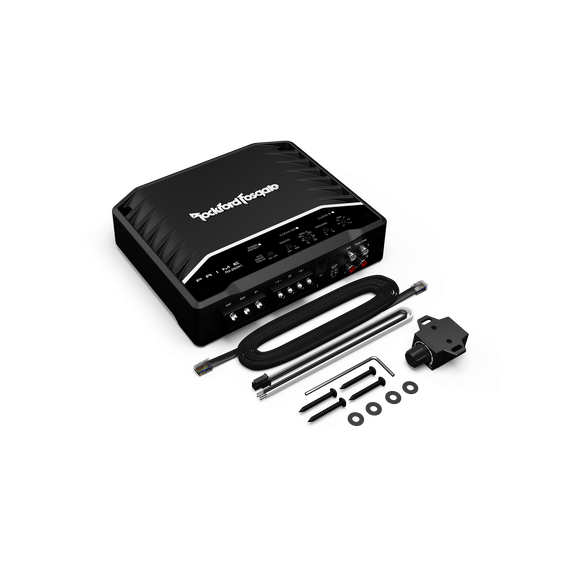

Included In The Box
Dimensions (H x W x D)1.9″ x 6.8″ x 8.1″
(4.9 cm x 17.3 cm x 20.5 cm)
