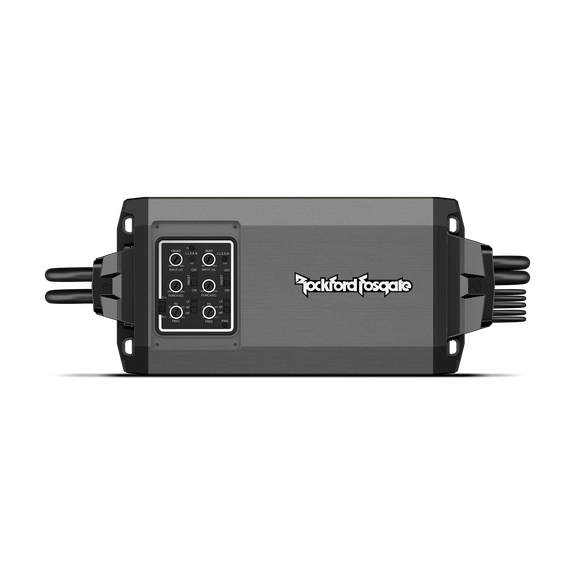

M5-800X4

800 Watt 4-Channel IPX6 Element Ready™ Amplifier
M5-800X4
Serious sound, made simple. The M5 amplifiers feature the next level of Element Ready™ design from Rockford Fosgate that’s built as rugged as the outdoor environment it’s used in.

Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your amplifiers stand the test of time.

C.L.E.A.N.: Our Patented circuit with input and output clip indicators help match the source unit to the amplifier, which makes for easy set-up and optimizes musical output.

P.O.W.E.R. Supply: The unique P.O.W.E.R. supply continues to generate more than rated power as the voltage increases, giving you the output, you demand.

FEATURES AT A GLANCE
Play all day, easy to integrate, and keep music playing for extended lengths of time
PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
Element Ready™ design with integrated harness & panel seals
Constant Power provides instantaneous delivery of output over varying impedance loads
RATS (Rockford Automated Testing System) proprietary quality & performance tested
C.L.E.A.N. input/output clip detection and indicator LEDs
Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
Proprietary Class-AD technology allows amplifier to produce more power with less current draw
OEM and aftermarket radio integration inputs
Top mounted control panel with Element Ready™ smoked lens cover
Remote-Out feature when using high level inputs
MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
Balanced Differential Inputs eliminates noise picked up by signal cables
Low Impedance Stability
Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
2-Year Warranty

Number of Channels 4
Total Power
(Sum of Rated Power)800 Watts
Rated Power
(RMS Continuous Power)CTA-2006 GuidelinesCTA-2006 Continuous Power Rating
≤1.0% THD+N
100 Watts x 4 @ 4Ω
100 Watts x 4 @ 2Ω
200 Watts x 2 @ 4Ω Bridged/Mono
Dynamic Power
(PVC/PowerCube®)CTA-2006 GuidelinesCTA-2006 Dynamic Power Rating
125 Watts x 4 @ 4Ω
200 Watts x 4 @ 2Ω
400 Watts x 2 @ 4Ω Bridged/Mono
BridgeableYes
Frequency Response10 Hz – 50 kHz
Input Sensitivity150mVrms – 12Vrms
Circuit Topology ClassClass-AD
Efficiency (average)>75%
Total Harmonic Distortion (THD+Noise)<0.25% THD+N @ 1 Watt
Signal InputLow-Level: 4 RCA
High-Level: (2) 4-Pin Molex
Signal Output—
Tone ControlsFront/Rear: 0-14dB @ 12.5kHz
Front/Rear: 0-18dB @ 45Hz
Crossover ControlsHigh-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth

Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave Butterworth

All-Pass: Yes
Remote ControlsNo
Visual IndicatorsPower: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
Power Wire Gauge8 AWG
Power Input ConnectorCompression Terminal Block
Replacement 1040-57997
Speaker Wire Gauge16 AWG
Speaker Output Connector4-Pin Molex
CoolingConvection
HeatsinkExtruded Aluminum
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)80A MAXI
Littelfuse #0299080
Average Current Draw (13.8V Music)4Ω Stereo: 29 A
2Ω Stereo: 29 A
4Ω Bridged: 29 A
Max. Current Draw (13.8V Sinewave)4Ω Stereo: 55 A
2Ω Stereo: 85 A
4Ω Bridged: 90 A
Suggested Alternator
Included in the Box(1) Control Cover (1130-75511-01)
(1) Extension Harnesses (1130-75503-01)
(1) Pwr/Gnd/Rem Connector (1040-61932-01)
(1) Front RCA Input Harness (1560-56458-02)
(1) Rear RCA Input Harness (1560-56727-02)
(1) Front Spk Out Harnness (1560-56568-01)
(1) Rear Spk Out Harness (1560-56544-01)
(1) Allen wrench
(1) RF sticker
(1) PRESET warning label
(1) Performance verification certificate
Dimensions (H x W x D)1.7″ x 4.25″ x 8.41″
(42.8 mm x 108 mm x 213 mm)
Does not include harnesses
Shipping Weight4.19 Lbs. (1.9 Kg.)
