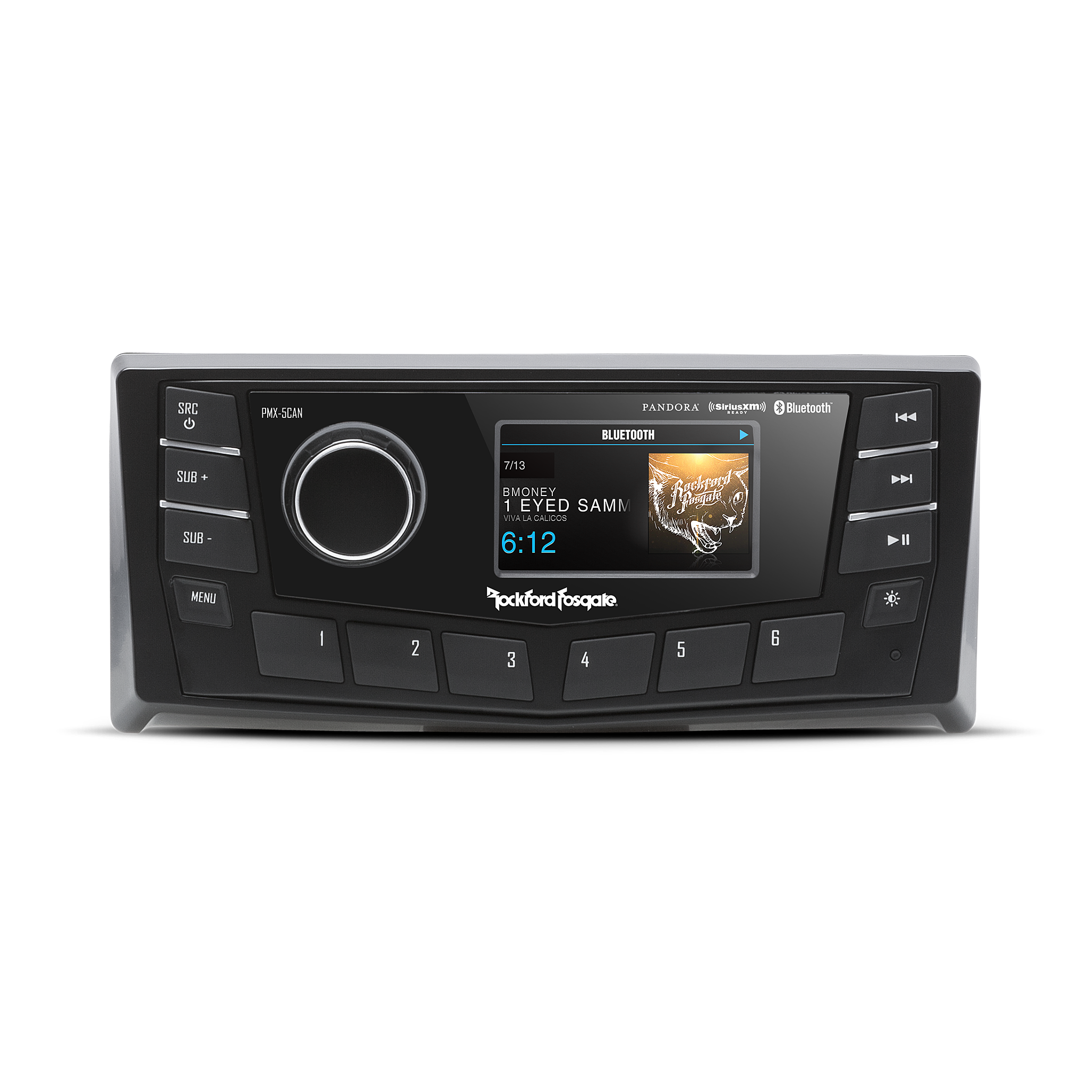

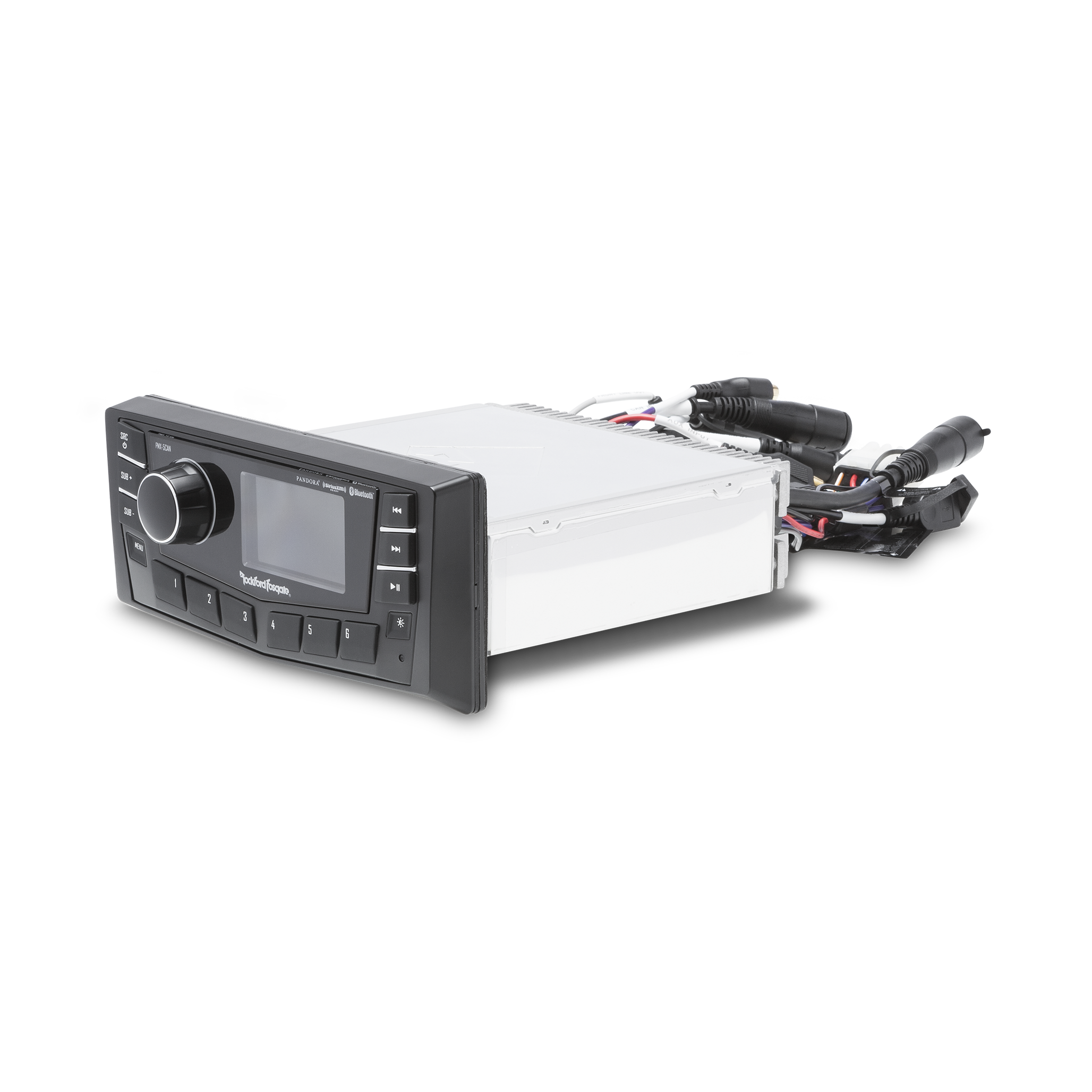

PMX-5CAN

Marine AM/FM/WB Multi-Zone Digital Media Receiver 2.7″ Display w/ CAN-bus
PMX-5CAN
The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with 2.7″ full color display. Features CAN-bus functionality for connection to NMEA 2000 systems using PMX-CAN.

FEATURES AT A GLANCE
Pandora Internet Radio
SiriusXM-Ready™
Stainless Steel Rear Chassis
Low Voltage Warning Alert
ISO8846/SAE J1171 Ignition Protection Certified
2.7″ full color display w/ auto dimming backlightning
Steering Wheel Control Interface Compatible
7-Band Graphic EQ
IPX6 Marine Grade for prevention of water intrusion
Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
Zone Control: 2 Zone / 2 Source (F/R/S + F)
A2DP and AVRCP Bluetooth Wireless Streaming
FCC, CE, IC, and C-Tick Certified
Multi-region radio frequencies
AUX and USB Inputs with USB Charging
On Board Punch EQ Control
Independent Subwoofer Level Control
Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility
2-Year Warranty
AM/FM/WB Tuner
CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
*Antenna not included

Operating Voltage10.5 V – 16 V
Compatible RemotesPMX-1R
PMX-0R
(3 Remote Limit, 100 ft Total Wired Distance)
FEATURES
Frequency Response20 Hz – 20 kHz
Pandora® Internet Radio
(Yes/No)Yes
SiriusXM-Ready®
(Yes/No)Yes
Requires SXV300
Device TypeDigital-Media Receiver
Dimensions (HxWxD)Width 8″ (20.3cm)
Face Depth 1.5″ (3.8cm)
Mount Depth 7.1″ (18.2cm)
Height 3.5″ (8.9cm)
Chassis to Face Top 0.9″ (2.3cm)
Chassis to Face Bottom 0.59″ (1.5cm)
Power OutputCEA-2006 Power RatingCEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω Peak
≤1.0% THD+N
Display Size2.7” Color TFT
Speaker Impedance2-Ohms
Fuse Rating15 A
Speaker Outputs
(Yes/No)Yes
Multi-Zone/Multi-Source
(Yes/No)Yes
Apple®/Android™ Compatible
(Yes/No)Yes
TUNER
AUX Input
(Yes/No)Yes
USB Charging
(Yes/No)Yes
Clock
(Yes/No)No
FM TUNER
Frequency Range87.9-107.9 MHz
Steering Wheel Control Ready
(Yes/No)Yes
TUNER
Number Of Presets18 FM / 12 AM / 6 WB
FM TUNER
Sensitivity8 dB
AM TUNER
Usable Sensitivity40 dB
AM TUNER
Frequency Range530 kHz – 1710 kHz
RCA OUTPUTS
WB TUNER
Frequency Range162.40 – 162.55
(US & Canada)
RCA Output Voltage4V
RCA Frequency Response87.5 MHz – 107.9 MHz
RCA Output Impedance500Ω
MEDIA PLAYER
Audio Format CompatibilityMP3
WMA
FLAC
MEDIA PLAYER
Made for iPod ModelsiPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)
Made for iPhone ModelsiPhone XS (pending)
iPhone XS Max
iPhone XR (pending)
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4
iPhone 4S
Phone 3GS
USB Capacity32Gb max
999 Folders max
999 Songs max
Android CompatibilityBluetooth® Only
USB Output Current1A
USB Version2.0
