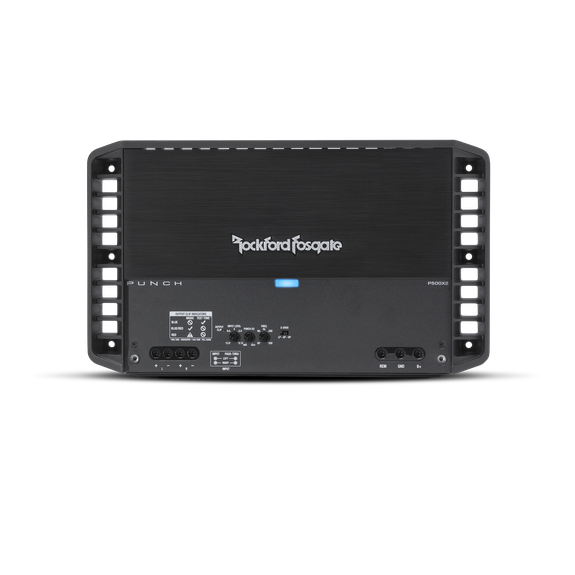

P500X2

Punch 500 Watt 2-Channel Amplifier
P500X2
The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
FEATURES AT A GLANCE
12dB/octave Butterworth crossover
RCA pass-thru outputs
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
Over current protection
Short circuit protection
On-board Punch EQ with +18dB boost @ 45Hz
High level input capable with Auto Turn-On circuit
Cast aluminum heatsink
1 Year Warranty
Muted turn on
Stealth top mounted control panel
Number of Channels2
Total Power
(Sum of Rated Power)500 Watts
Rated Power
(RMS Continuous Power)150 Watts x 2 @ 4-Ohm
250 Watts x 2 @ 2-Ohm
500 Watts x 1 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)223 Watts x 2 @ 4-Ohms 0° Res
365 Watts x 2 @ 2-Ohms 0° Res
BridgeableYes
Frequency Response20Hz to 20kHz +/- 1.0dB
Input Sensitivity150 mV – 12 V
Circuit Topology ClassClass A/B
Efficiency (average)73% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputHi/Low level: 1 RCA pair
Signal OutputLow level: 1 RCA pair
Tone ControlsPunch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12dB @ 12kHz
Function depends upon LP/AP/HP switch position
Crossover ControlsHigh-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Remote ControlsOptional Punch Level Control (PLC2) Ready
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge4 AWG
Power Input ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorCaptive C-Clamp
CoolingConvection
Heatsink
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)80 A
Average Current Draw (13.8V Music)40 A
Max. Current Draw (13.8V Sinewave)80 A
Suggested Alternator75 A
Included In The Box
Dimensions (H x W x D)2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight12.3 Lbs. (5.57 Kg.)
