T3S1-19

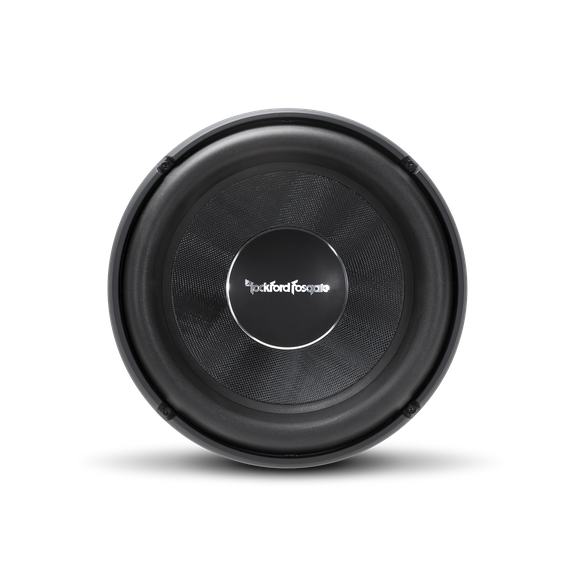

Power 19″ T3 Single 1-Ohm Superwoofer
T3S1-19
The Power T3S1-19 superwoofer has a whopping 19-inches of effective radiating cone area for deep bass and features a single 1-Ohm voice coil for easy wiring. This is the largest, most powerful loudspeaker Rockford Fosgate has ever built!
FEATURES AT A GLANCE
Aluminum dustcap
Injection molded foam surround with VAST™
Dual Nomex progressive spiders with stitched tinsel leads
Three layer glass fiber/Aramid honeycomb/Glass fiber cone
Proprietary surround mechanical clamping ring
Diecast aluminum frame with integrated heat sink fins and venting
Custom push spring insulated 4 AWG terminals
Single layer edge wound aluminum 5″ voice coil
Integrated die cast aluminum trim ring
Dual gap multi-pole Neodymium push/pull motor structure
Since voice coil design with dual (push/pull) windings
1 Year Warranty
Magnet Weight (oz)115 oz. (3.26 Kg)
Subwoofer TypeSuperwoofer
Voice Coil TypeSingle Voice Coil
Speaker Connector4 AWG Compression Terminal
Power Handling (Watts RMS)3000 Watts RMS
6000 Watts Max
Nominal Impedance1-Ohm
Size19″
CEA-2031 CompliantCEA-2031 Guidelines
Fs (Hz)27
Voice Coil Diameter5.0″ (127 mm)
Qts0.32
Le (mH)0.45
Re (Ohms)0.8
Qms1.93
SPL (dB @ 1w/1m)91
Sd (cm2)1472
Vas (Liters)104.9
Qes0.38
Cutout Diameter17.72 in. (440 mm)
Xmax (mm)34
Mounting Depth15.62 in. (396 mm)
Woofer Displacement0.339 cu. ft. (9.6 Liters)
Sealed Box Volume (Vb)—
Shipping Weight106.30 Lbs. (48.2 Kg.)
Vented Box Volume (Vb)8.0 cu. ft. (226.5 Liters)
