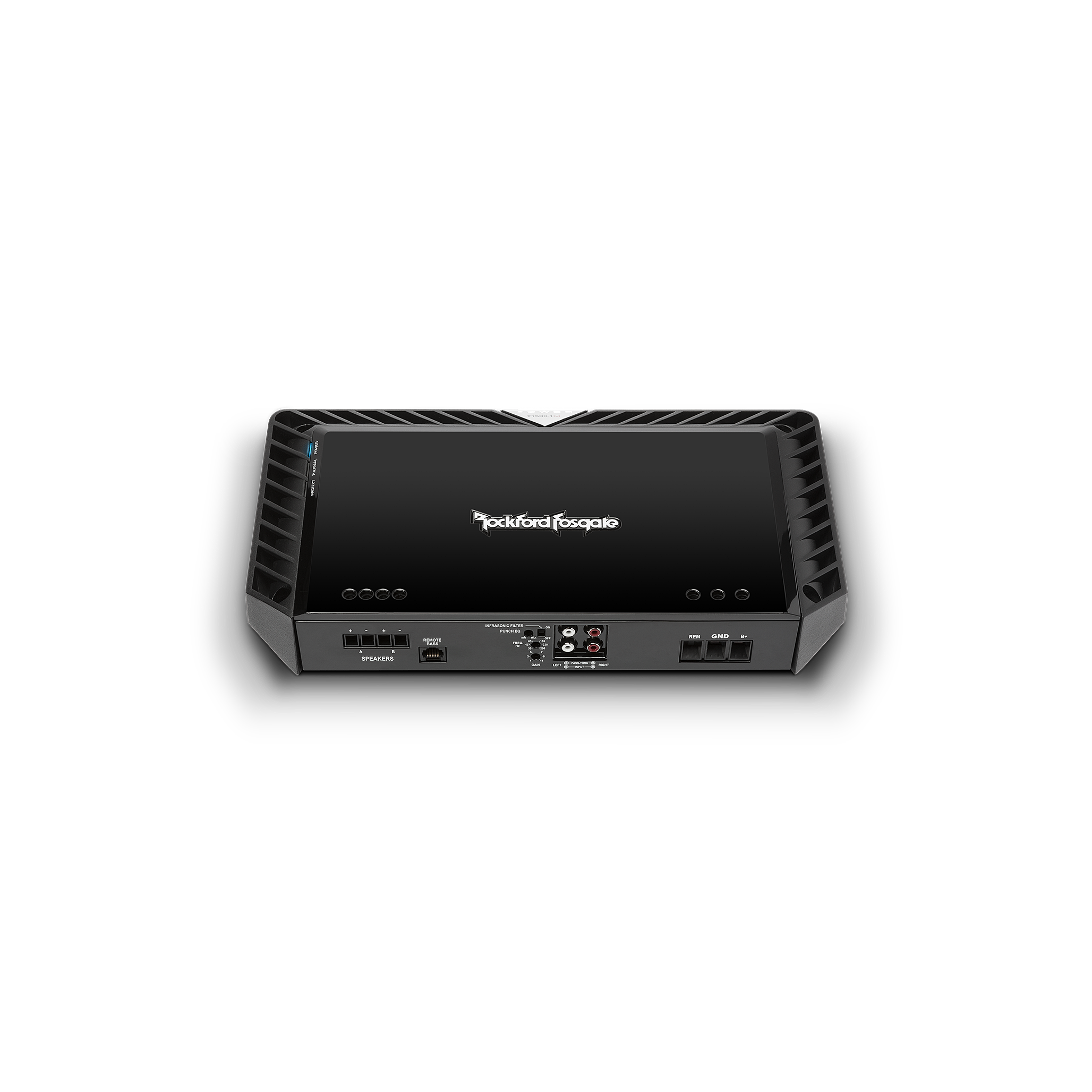

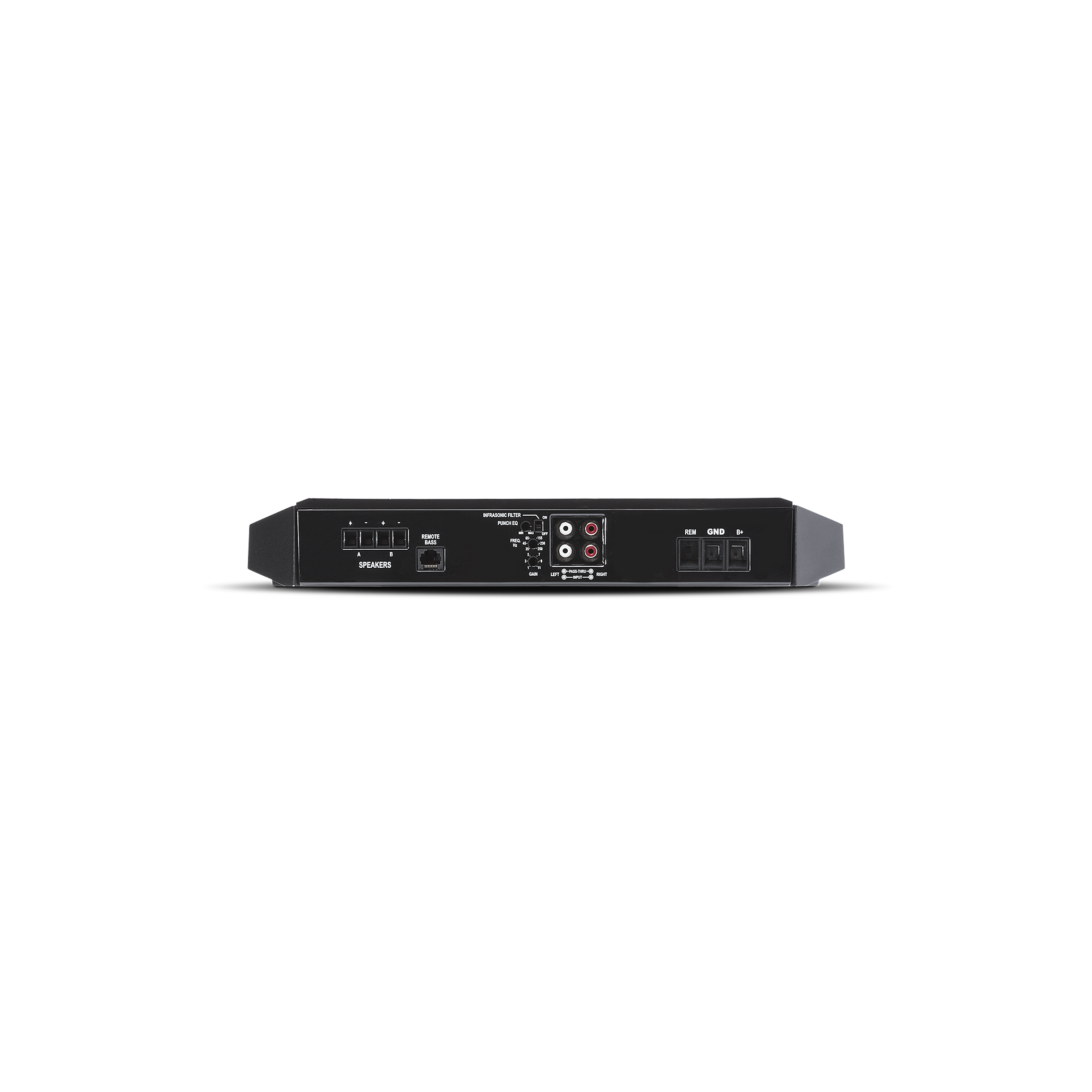

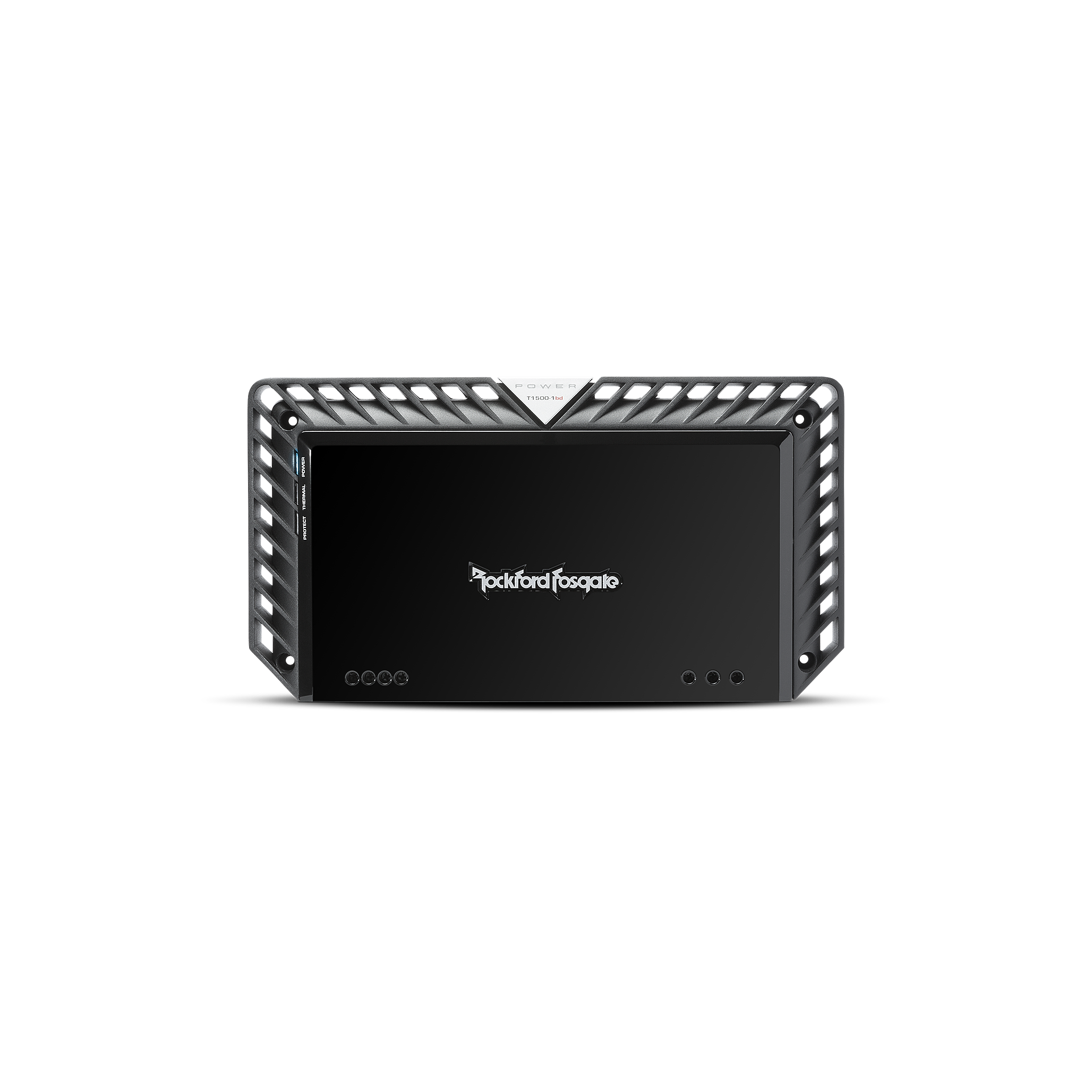

T1500-1bdCP

Power 1,500 Watt Class-bd Constant Power Amplifier
T1500-1bdCP
The Power T1500-1bdCP is a 1,500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1500-1bdCP is optimized exclusively for use with subwoofers in cars and trucks.
FEATURES AT A GLANCE
MOSFET output stage
4 Gauge power/ground connectors
Audiophile grade speaker connections
24dB/octave crossover
Infrasonic filter
MOSFET power supply
RCA pass-thru outputs
2-Year Warranty
Number of Channels1
Total Power
(Sum of Rated Power)1500 Watts RMS
Rated Power
(RMS Continuous Power)1000 Watts x 1 @ 4-Ohm
1500 Watts x 1 @ 2-Ohm
1500 Watts x 1 @ 1-Ohm
Dynamic Power
(PVC/PowerCube®)1045 Watts x 1 @ 4-Ohms
1549 Watts x 1 @ 2-Ohms
1715 Watts x 1 @ 1-Ohm
BridgeableNo
Frequency Response20Hz to 250Hz +/- 0.5dB
Input Sensitivity150 mV to 4 V
Circuit Topology ClassClass BD
Efficiency (average)86.2% @ 4-Ohm
74.6% @ 2-Ohm
63.0% @ 1-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Signal InputLow level: 1 RCA pair
Signal OutputLow Level: 1 RCA pair
Tone ControlsBass: 0dB to +18dB @ 45Hz
Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
Crossover ControlsLow-Pass (LP): 35-250Hz 24dB/octave Butterworth
Remote ControlsOptional Remote Punch Bass EQ
(overrides built-in Punch Bass EQ)
Visual IndicatorsPower
Thermal
Protect
Power Wire Gauge4 AWG
Power Input ConnectorBlock
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorScrew terminal barrier strip
CoolingConvection
Heatsink
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)200 A
Average Current Draw (13.8V Music)100 A
Max. Current Draw (13.8V Sinewave)200 A
Suggested Alternator100 A
Included In The Box
Dimensions (H x W x D)2.14 x 8.14 x 14.91 (in)
5.42 x 20.68 x 37.86 (cm)
