P400X4

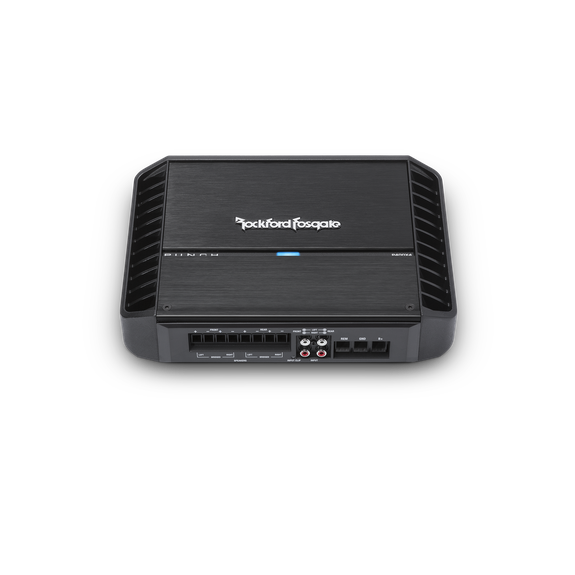

Punch 400 Watt 4-Channel Amplifier
P400X4
The Punch P400X4 is a 4-channel amplifier producing 100 Watts into all four channels at 2-Ohm. The P400X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
FEATURES AT A GLANCE
12dB/octave Butterworth crossover
Short circuit protection
Over current protection
Features C.L.E.A.N. Set-up
High level input capable with Auto Turn-On circuit
On-board Punch EQ with +18dB boost @ 45Hz
Cast aluminum heatsink
Muted turn on
1 Year Warranty
Stealth top mounted control panel
Number of Channels4
Total Power
(Sum of Rated Power)400 Watts
Rated Power
(RMS Continuous Power)50 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)82 Watts x 4 @ 4-Ohm
137 Watts x 4 @ 2-Ohm
266 Watts x 2 @ 4-Ohm Bridged
BridgeableYes
Frequency Response20Hz to 20kHz +/- 1.0dB
Input Sensitivity150 mV – 12 V
Circuit Topology ClassClass A/B
Efficiency (average)67% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputHi/Low level: 2 RCA pair
Signal Output-
Tone ControlsFront Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz
Function depends upon LP/AP/HP switch position
Crossover ControlsFront High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth
Rear High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Remote Controls-
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge8 AWG to 4 AWG
Power Input ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorCaptive C-Clamp
CoolingConvection
Heatsink
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)60 A
Average Current Draw (13.8V Music)30 A
Max. Current Draw (13.8V Sinewave)60 A
Suggested Alternator75 A
Included In The Box
Dimensions (H x W x D)2.38 x 7.76 x 11.03 (in)
6.05 x 19.71 x 28.02 (cm)
Shipping Weight10.8 Lbs. (4.89 Kg.)
