T600-4

Power 600 Watt 4-Channel Amplifier
T600-4

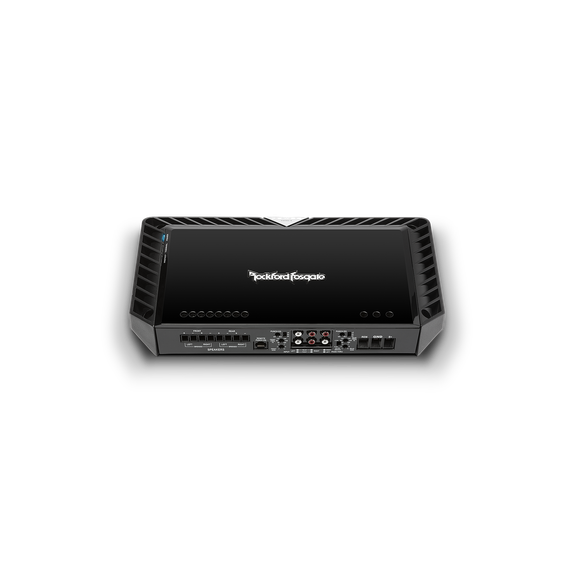

The Power T600-4 is a 4-channel amplifier capable of producing 150 Watts into each of its four channels at 2-Ohms. The T600-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.
FEATURES AT A GLANCE
MOSFET output stage
Audiophile grade speaker connections
24dB/octave crossover
MOSFET power supply
2/4 channel input switch
4 Gauge power/ground connectors
RCA pass-thru outputs
2-Year Warranty
Number of Channels4
Total Power
(Sum of Rated Power)600 Watts RMS
Rated Power
(RMS Continuous Power)100 Watts x 4 @ 4-Ohm
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm Bridged
2-Ohm x 2 Bridged Stable
Dynamic Power
(PVC/PowerCube®)Front Channels
139 Watts x 2 @ 4-Ohms 0° Res
236 Watts x 2 @ 2-Ohms 0° Res

Rear Channels
140 Watts x 2 @ 4-Ohms 0° Res
236 Watts x 2 @ 2-Ohms 0° Res
BridgeableYes
Frequency Response20Hz to 20kHz +/- 1dB
Input Sensitivity150 mV to 4 V
Circuit Topology ClassClass A/B
Efficiency (average)70% @ 4-Ohm
64% @ 2-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal InputFront Low level: 1 RCA pair
Rear Low level: 1 RCA pair
Input Switch: 2CH / 4CH
Signal OutputLow Level: 1 RCA pair
Tone ControlsFront Channels – Punch EQ
Treble: 0dB to +12dB @ 12kHz
Bass: 0dB to +18dB @ 45Hz

Rear Channels – Punch EQ
Treble: 0dB to +12dB @ 12kHz
Bass: 0dB to +18dB @ 45Hz
Crossover ControlsFront High-Pass (HP): 50-500Hz 24dB/octave Butterworth
Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth
Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
Remote ControlsOptional Remote Punch EQ
(overrides rear channel built-in Punch EQ)
Visual IndicatorsPower
Thermal
Protect
Power Wire Gauge4 AWG
Power Input ConnectorBlock
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorScrew terminal barrier strip
CoolingConvection
Heatsink
Operating Voltage9 – 16 VDC
Recommended Fuse
(not included)80 A
Average Current Draw (13.8V Music)40 A
Max. Current Draw (13.8V Sinewave)80 A
Suggested Alternator75 A
Included In The Box
Dimensions (H x W x D)2.14 x 8.14 x 14.91 (in)
5.42 x 20.68 x 37.86 (cm)
