PMX-8BB

Punch Marine Hide-Away AM/FM/WB Multi-Zone Digital Media Receiver
PMX-8BB

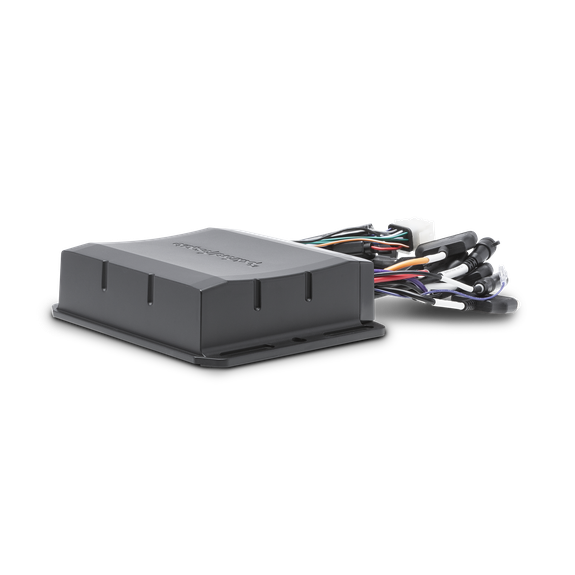

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to NMEA2K systems using PMX-CAN.

FEATURES AT A GLANCE
Made for iPhone apple certified
Simple secure pairing bluetooth profile for android & iOS
Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
Internal power amplifier 4x50w 2 ohm stable
Bluetooth, A2DP only, AVRCP 1.4
Folder browsing via BT connected iPhones
Selectable high pass and low pass crossover points for each independent zone
Selectable crossover slopes of 12dB or 24 dB for each independant zone
Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
Adjustable input gain for each source
Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
Display album art from connected iPhones on the radios display
Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
Integrated voltage gauge w/ low voltage alert
External steering wheel remote control interface compatible
Wired remote ready (up to 3 remotes)
Upgradeable Firmware and Bluetooth Software via USB
Epoxy coated circuit board
Wired illumination control
External trigger input to activate reverse camera mode
Rear aux-in (L/R)
IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
Optional CAN-BUS transceiver ready (PMX-CAN)
CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
Rear USB with 1a charging (supports album art on USB connected iPhones)
Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility
*Antenna not included
2-Year Warranty

Operating Voltage10.5V – 16V
Device TypeDigital-Media Black Box
Remote Capacity(see Compatibility Chart)
Power OutputCEA-2006 GuidelinesCEA-2006 Power Rating
25W x 4 @ 4Ω RMS
≤1.0% THD+N
Speaker Impedance2-Ohms
Frequency Response20 Hz – 20 kHz
GENERALN/A
FEATURESN/A
Display SizeN/A
SPEAKER OUTPUTSYES
Dimensions (HxWxD)H4.25″ x W8.3″ x D2.2″
(108mm x 211mm x 56mm)
Fuse Rating15A
Speaker Outputs
(Yes/No)Yes
Clock
(Yes/No)No
Bluetooth®
(Yes/No)Yes
3.0+EDR, A2DP 1.3
SiriusXM-Ready®
(Yes/No)Yes
Requires SXV300
Multi-Zone/Multi-Source
(Yes/No)Yes
Apple®/Android™ Compatible
(Yes/No)Yes
Steering Wheel Control Ready
(Yes/No)Yes
Pandora® Internet Radio
(Yes/No)Yes
AUX Input
(Yes/No)Yes
USB Charging
(Yes/No)Yes
FM TUNER
Frequency Range87.5 MHz – 107.9 MHz
TUNERN/A
TUNER
Number Of Presets18 FM / 12 AM / 6 WB
AM TUNER
Frequency Range530 kHz – 1710 kHz
WB TUNER
Frequency Range162.40 – 162.55
(US & Canada)
MEDIA PLAYER
Audio Format CompatibilityMP3
WMA
FLAC
USB Version2.0
MEDIA PLAYERN/A
USB Capacity32Gb max
999 Folders max
999 Songs max
USB Output Current1A
Made for iPod ModelsiPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)
Android CompatibilityBluetooth® Only
RCA OUTPUTSN/A
Made for iPhone ModelsiPhone XS (pending)
iPhone XS Max
iPhone XR (pending)
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4
iPhone 4S
Phone 3GS
RCA Output Voltage4V
