PM100X1K

Punch 100 Watt Full-Range Element Ready Mono Amplifier (pair)
PM100X1K

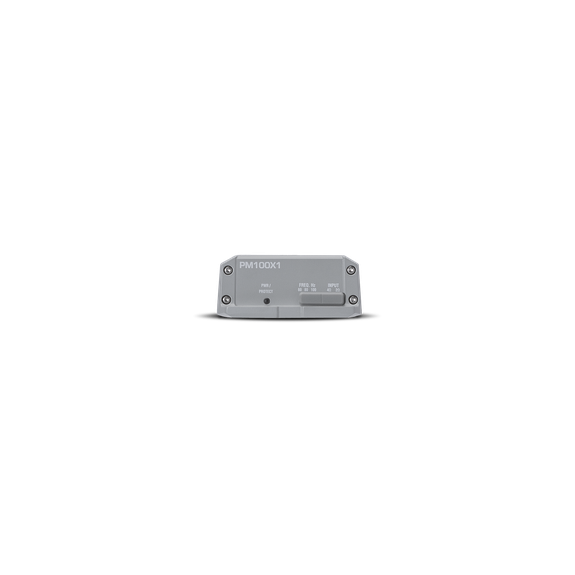

The PM100X1 is a 100 Watt dynamic power mono amp using DC and AC voltages present on existing radio speaker outputs. This design allows connection to a speaker wire without running a B+ cable. It also presents a safe load to the radio amp circuit to eliminate excessive wear and tear on the radio, making it ideal for OEM and aftermarket radio integration. The conformal coated PCB and enclosure are IPX6 rated for the next level in Element Ready™ protection against water, dust and UV rays.

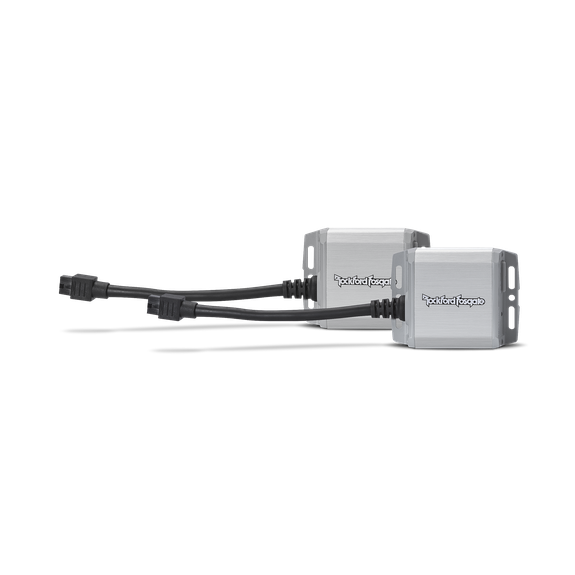

The PM100X1K “KIT” ships with 2 pcs.
FEATURES AT A GLANCE
Patented BTL Powered “FreeLoad” Technology (US 9,438,181 B1)
Extruded Aluminum Heat Sink
Pig Tail Connectivity for Easy Installation
Current Limited to Protect Head Unit for Both 4 Ohm and 2 Ohm Configurations
Uses Stored Energy from BTL Amplifier to Produce Dynamic Power of Over 100W
Harvests both B+ and Audio Signal From Standard Head Unit Speaker Outputs
Short Circuit & Over Voltage Protection
CEA-2006 Compliant & CE Compliant
High Level Turn On
Optional B+ Connection for Non-Standard Speaker Outputs
Discrete surface mount technology
Thermal Protection
Small Stealth Package that Allows for Anywhere Installation
60, 80, and 100 Hz Selectable 12dB/Oct HP Butterworth Crossover
Selectable 4 and 2 Ohm Play
Muted turn on
2-Year Warranty
Sold in pairs (left/right)
