P300-12

Punch Single 12″ 300 Watt Amplified Subwoofer
P300-12

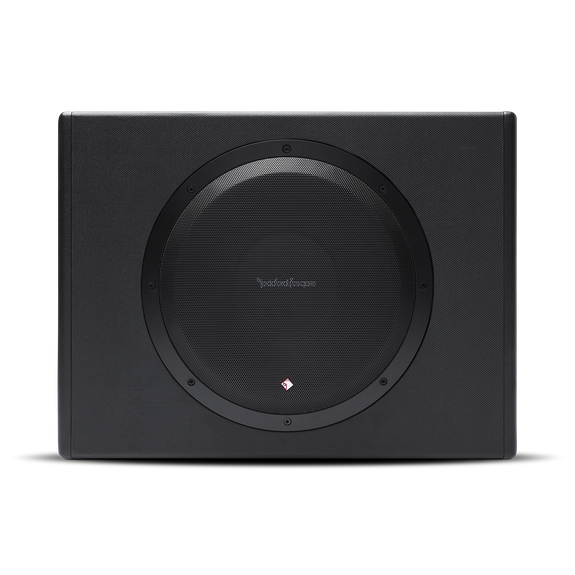

The P300-12 powered subwoofer is an “all-in-one” solution when adding bass to a factory system or just to save space. This model features a 12” subwoofer in a sealed enclosure powered by an internal 300 watt amplifier.

FEATURES AT A GLANCE
“Closed-loop” design ensures optimum performance between woofer, amplifier and enclosure

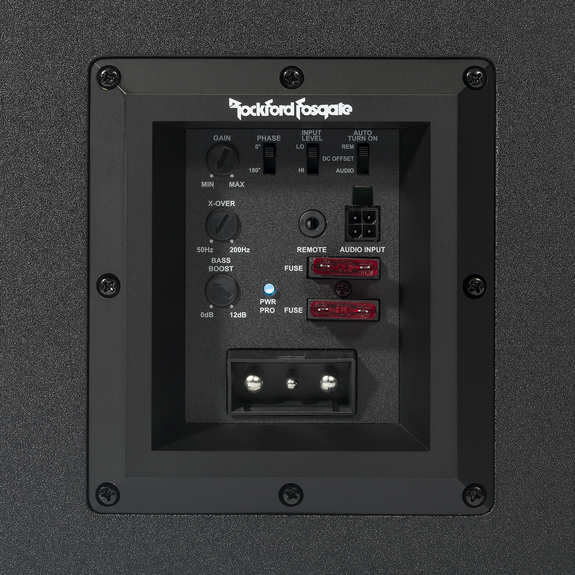

Built-in 0°/180° phase switch
Separate low level and speaker level inputs
Built-in adjustable bass boost EQ
Adjustable 12db/Octave low pass crossover
Intelligent auto turn on/off function
High-efficiency, low current design
Thermal and over/under voltage protection
Remote bass level control included
Large AWG input terminals
Proprietary high output woofer
Detachable Power/Ground connector
Constructed with 5/8″ MDF
1 Year Warranty
Covered with industrial heat activated vinyl
CEA-2031 CompliantCEA-2031 Guidelines
CEA-2006 CompliantCEA-2006 Guidelines
CoolingConvection
Signal InputLow-Level: 1 RCA Pair
High-Level: Left/Right Summed Inputs
Tone ControlsGain & Bass Boost
Integrated Amplifier300 Watts RMS
Frequency Response20 Hz to 200 Hz
Enclosure Material5/8″ MDF (Medium Density Fiberboard)
Woofer Quantity1
Speaker Connectorn/a
Woofer Size12″
Power Input ConnectorQuick Disconnect
Replacement Part: 1130-59232-01
Woofer SeriesProprietary
Remote ControlIncluded
Power Handling (Watts RMS)300 Watts RMS
Visual IndicatorsPower
Protect
Enclosure TypeAmplified
Crossover ControlsVariable 50 Hz to 200 Hz
12dB/Octave Butterworth
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)15 x 19.8 x D1 11 – D2 7 (in)
38.1 x 50.29 x D1 27.94 – D2 17.78 (cm)
Shipping Weight29.6 Lbs. (13.42 kg.)
Power Wire Gauge8 AWG
Heat Sink TypeExtruded Aluminum
Circuit Topology ClassClass-D
