P1S2-15

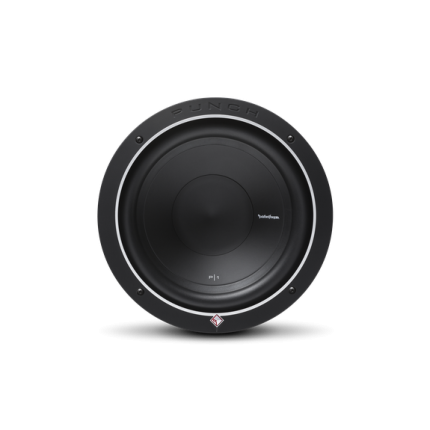

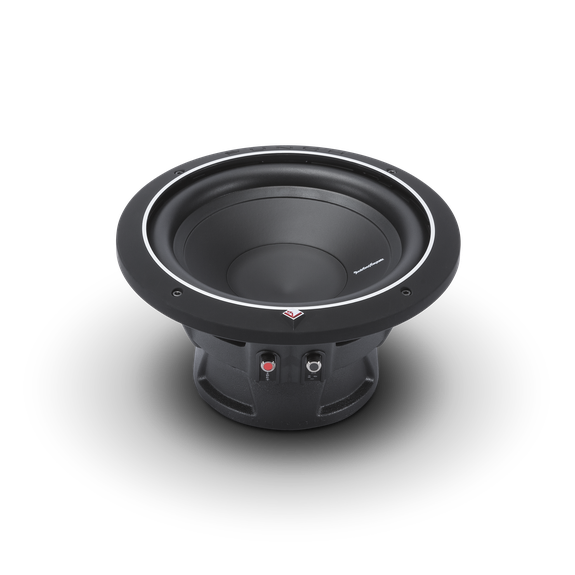

Punch 15″ P1 2-Ohm SVC Subwoofer
P1S2-15
Rockford Fosgate P1 15” is the first in a family of famous “Punch” subwoofers. The P1S2-15 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
FEATURES AT A GLANCE
1 Year Warranty
Kevlar fiber reinforced paper cone
StampCast basket with integrated spider venting
Rubberized ABS trim ring with optional grille
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Linear spider with embedded 16 AWG tinsel leads
Extended pole piece and bumped vented backplate
Custom 10-AWG nickel plated push terminals
Protective PVC textured magnet cover
Size15″
Voice Coil TypeSingle Voice Coil
Subwoofer TypeStandard
CEA-2031 CompliantCEA-2031 Guidelines
Power Handling (Watts RMS)250 Watts RMS
500 Watts Max
Nominal Impedance2-Ohm
Qms3.46
Qes0.80
Fs (Hz)23
Speaker ConnectorDual 10 AWG compression
Magnet Weight (oz)60 oz. (1.70 kg.)
Voice Coil Diameter2.0″ (51.6 mm)
Qts0.55
Vas (Liters)191.5
Re (Ohms)1.8
Le (mH)1.12
SPL (dB @ 1w/1m)87
SPL (dB @ 2.8v/1m)90
Xmax (mm)9.0
Sd (cm2)876
Mounting Depth6.98 in. (177.2 mm)
Cutout Diameter13.85 in. (351.8 mm)
Woofer Displacement0.148 cu. ft. (4.2 Liters)
Sealed Box Volume (Vb)1.58 cu. ft. (44.7 Liters)
Vented Box Volume (Vb)2.66 cu. ft. (75.3 Liters)
Shipping Weight17.6 Lbs. (7.98 Kg)
