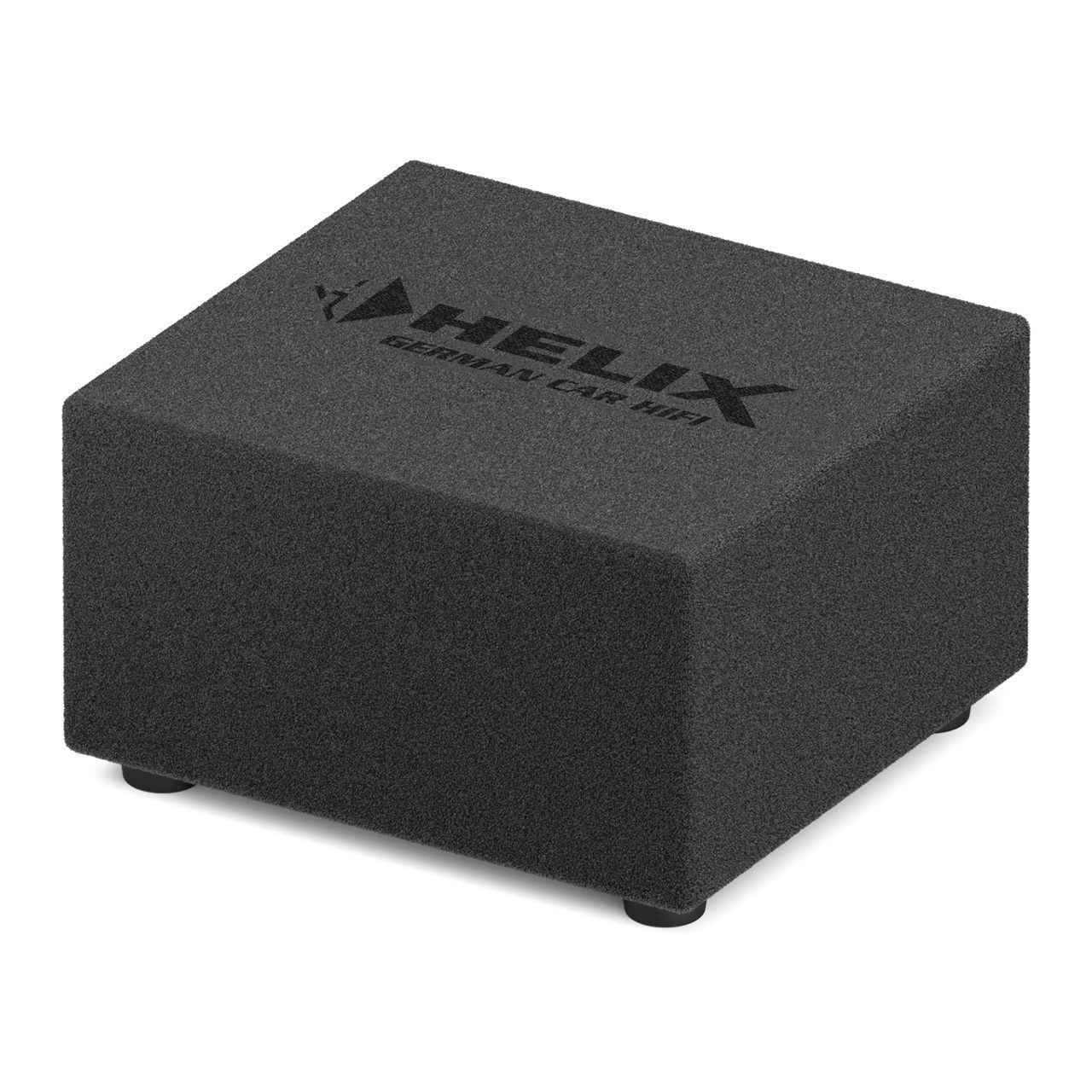

HELIX IK E8.1-SVC2

219,00

Downfire subwoofer in a compact ported enclosure with 8” / 200 mm chassis and 1 x 2 Ohms impedance

Κωδικός προϊόντος: K330813 Κατηγορία:

The HELIX IK E8.1-SVC2 combines compactness with a powerful low-frequency punch. Its downfire enclosure ensures optimal bass dispersion while offering robust protection for the speaker, making it a smart solution for tight spaces without compromising on sound quality.

Compact and efficient design

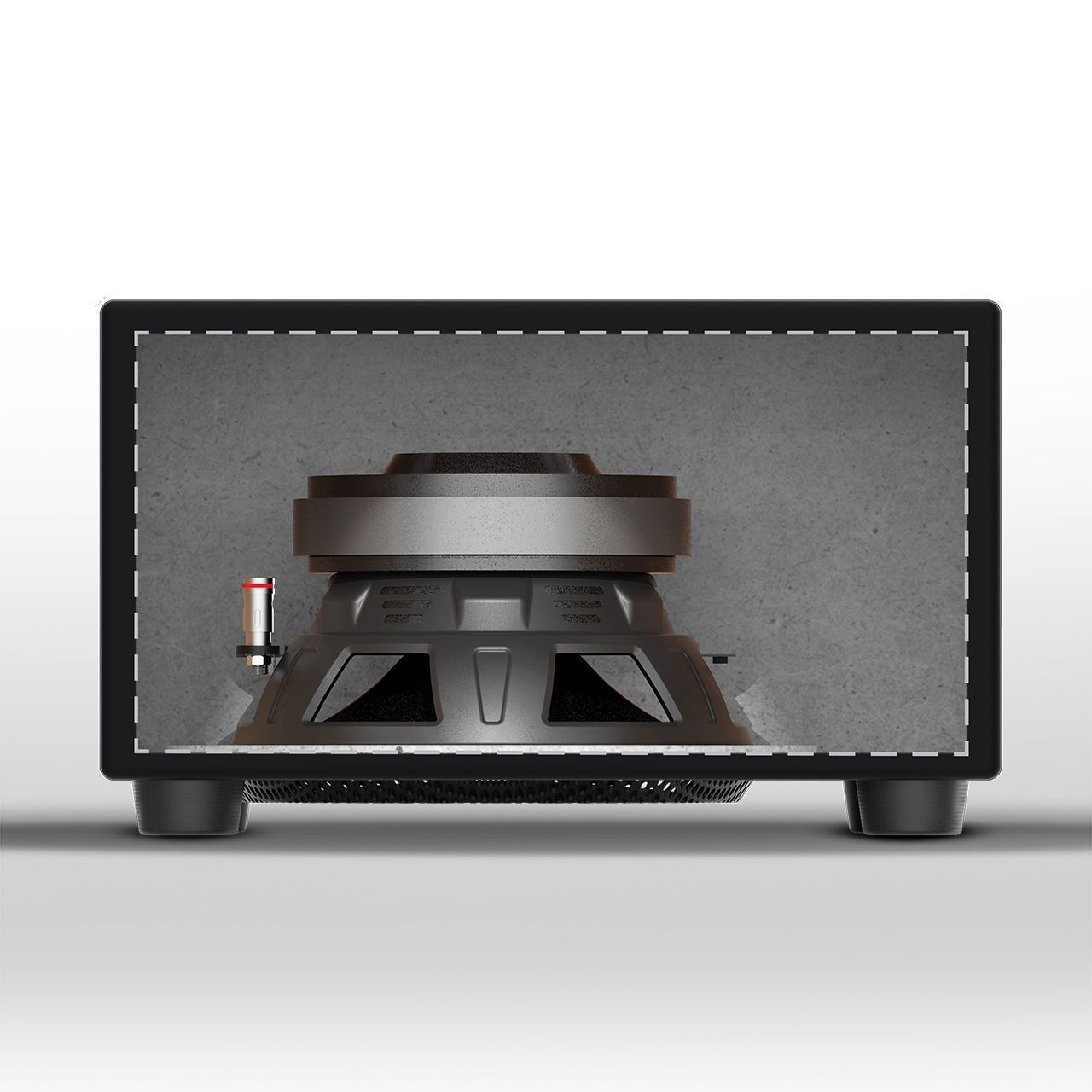

The sophisticated and compact ported enclosure design of the IK E8.1-SVC2 delivers impressive sound pressure and deep bass, even in the tightest spaces. Equipped with an 8” (200 mm) subwoofer featuring a hand-scooped paper cone, this subwoofer ensures rich, powerful low-frequency performance across the entire vehicle.

Comfortable installation and configuration

With the pluggable screw terminal, installation or removal of the subwoofer is fast and secure. The single 2 Ohms voice coil provides the groundwork for the maximum power output from the amplifier.

Built for durability

The enclosure is covered with a sturdy carpet featuring the embroidered HELIX logo, ensuring both style and resilience. Furthermore, the feet, equipped with Velcro tape, provide a secure and stable stand within the vehicle.

Features

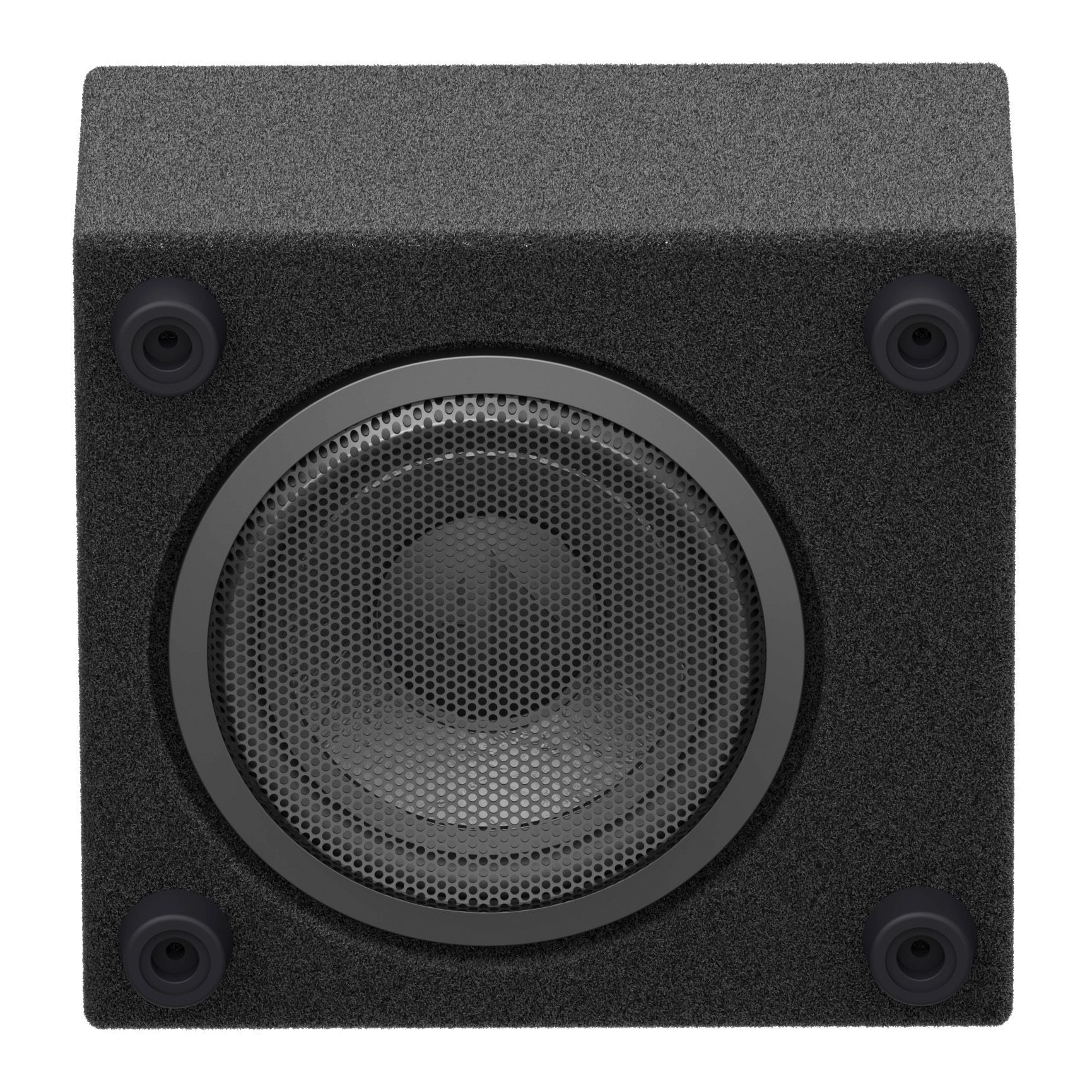

  • Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
  • Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
  • Equipped with one powerful 200 mm / 8” subwoofer with hand-scooped paper cone for rich, deep bass
  • Chassis with 1 x 2 Ohms single voice coil for maximum power output of the amplifier

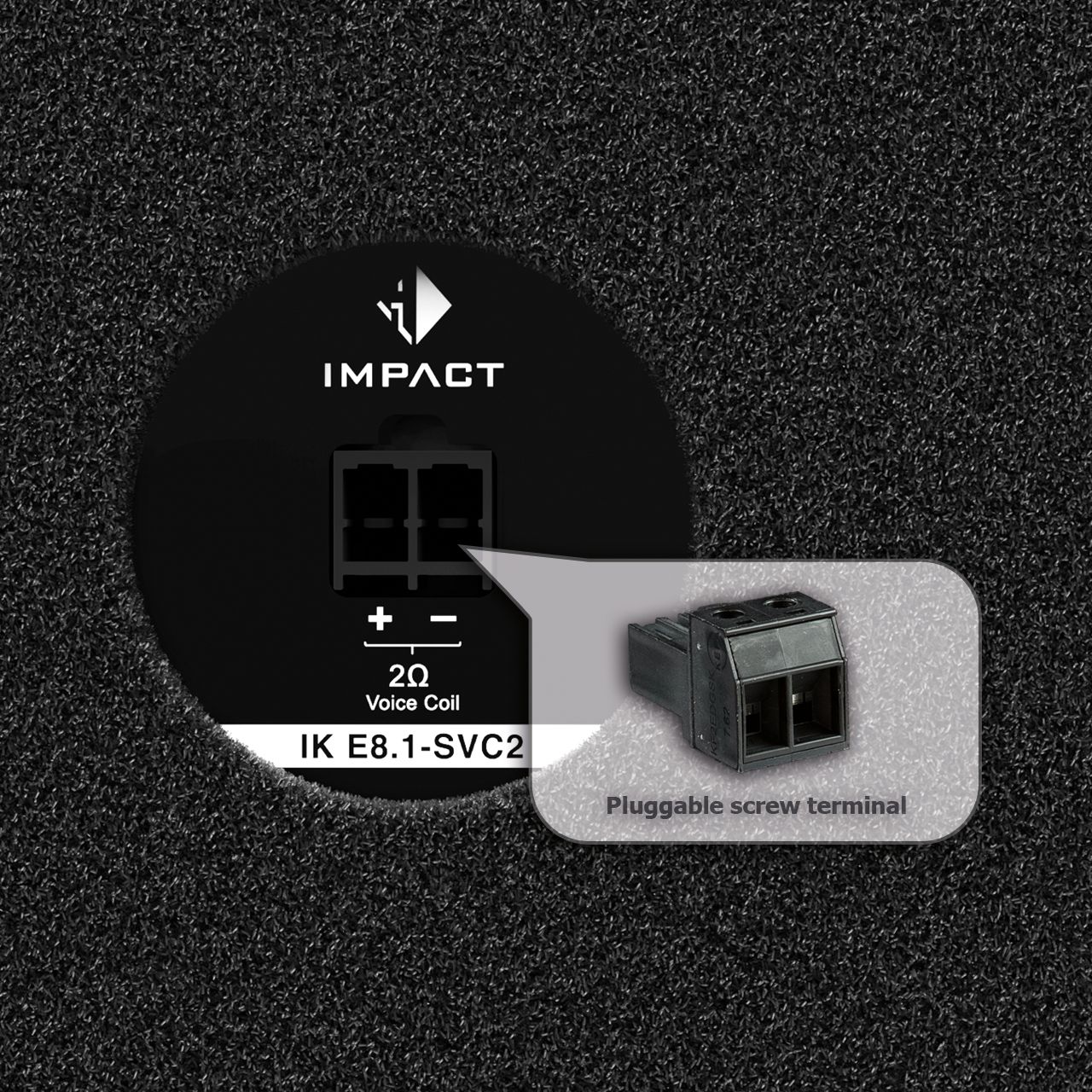

  • Pluggable screw terminal for quick and safe installation and removal
  • Feet with Velcro tape for a secure stand in the vehicle
  • Sturdy carpet surface with embroidered HELIX logo

Technical data

Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 – 300 Watts
Impedance  z 1 x 2 Ω
Max. linear excursion  Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity SPL

91 dB @ 2.83V / 1m
85 dB @ 1W / 1m

Dimensions (H x W x D)

184 x 310 x 285 mm
7.2 x 12.2 x 11.2″

Integrated subwoofer chassis   HELIX IK W8-SVC2
Recommended DSP settings   “Self-define” highpass 44 Hz / Q = 1.6;
EQ filter: 115 Hz / Q = 0.9 / -3.5 dB

Scope of delivery

1 x Downfire enclosure subwoofer IK E8.1-SVC2
1 x Data sheet
